Regulators

Tescom 44-1862-24S

SKU: 8007

In Stock

Used

Excl. VAT: €330.00 (1 available)

Incl. VAT: €399.30

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Warranty Periods by Condition

New 12 months

Refurbished DOA

Used DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

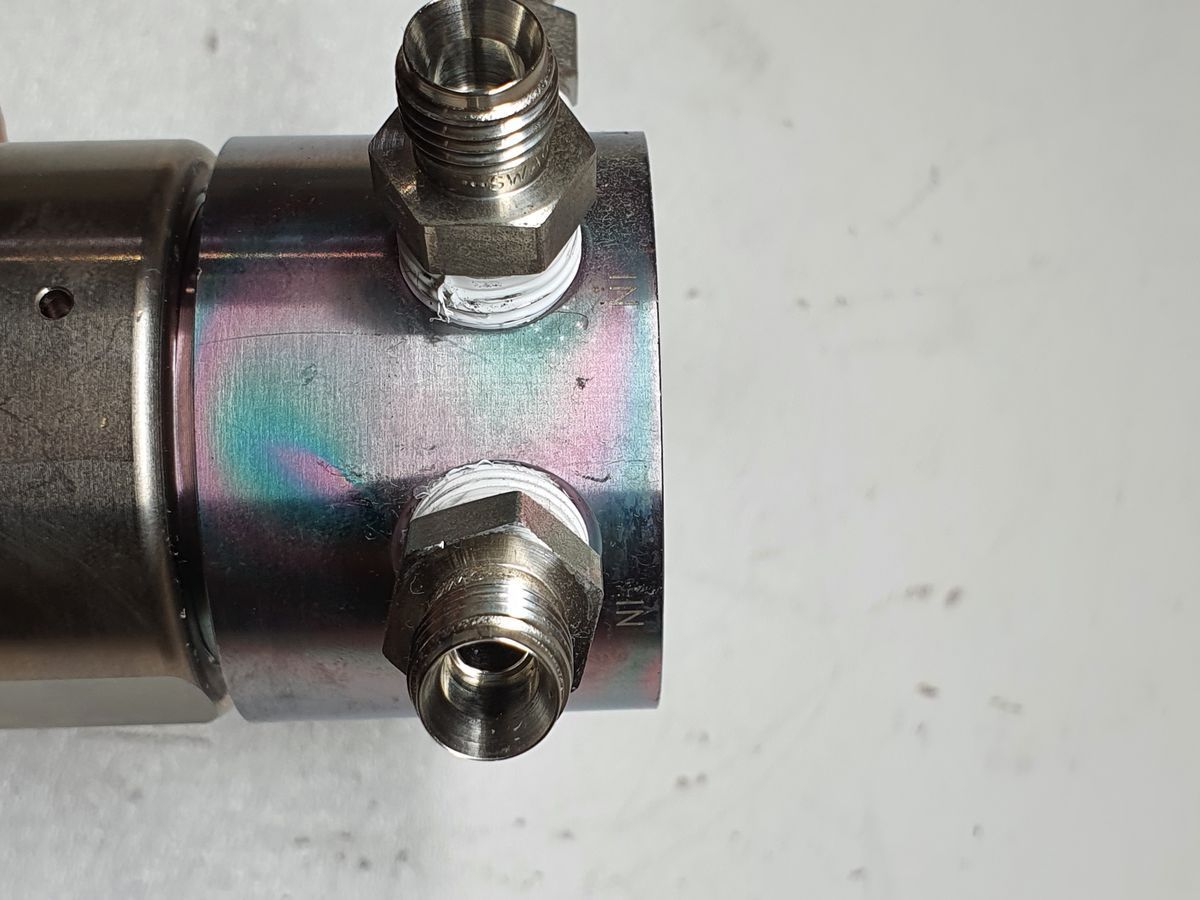

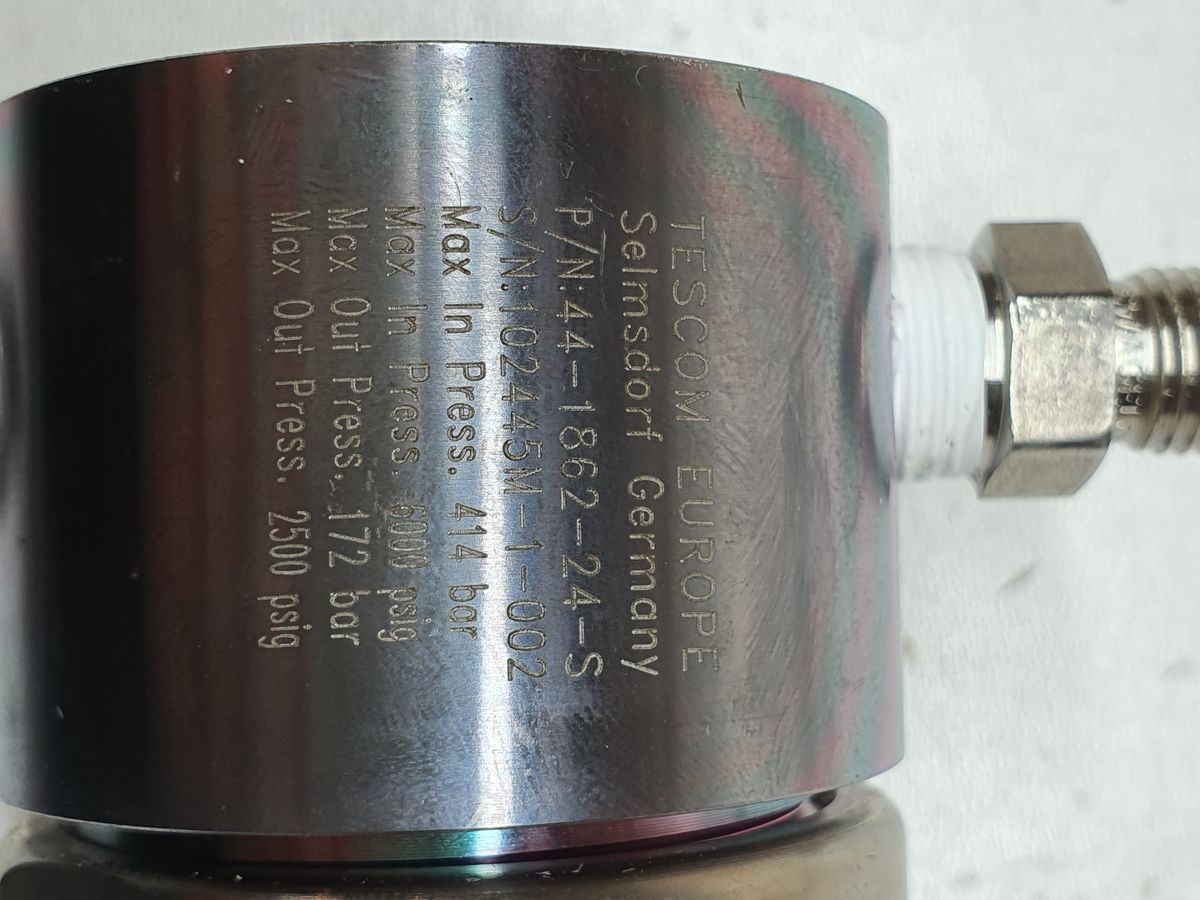

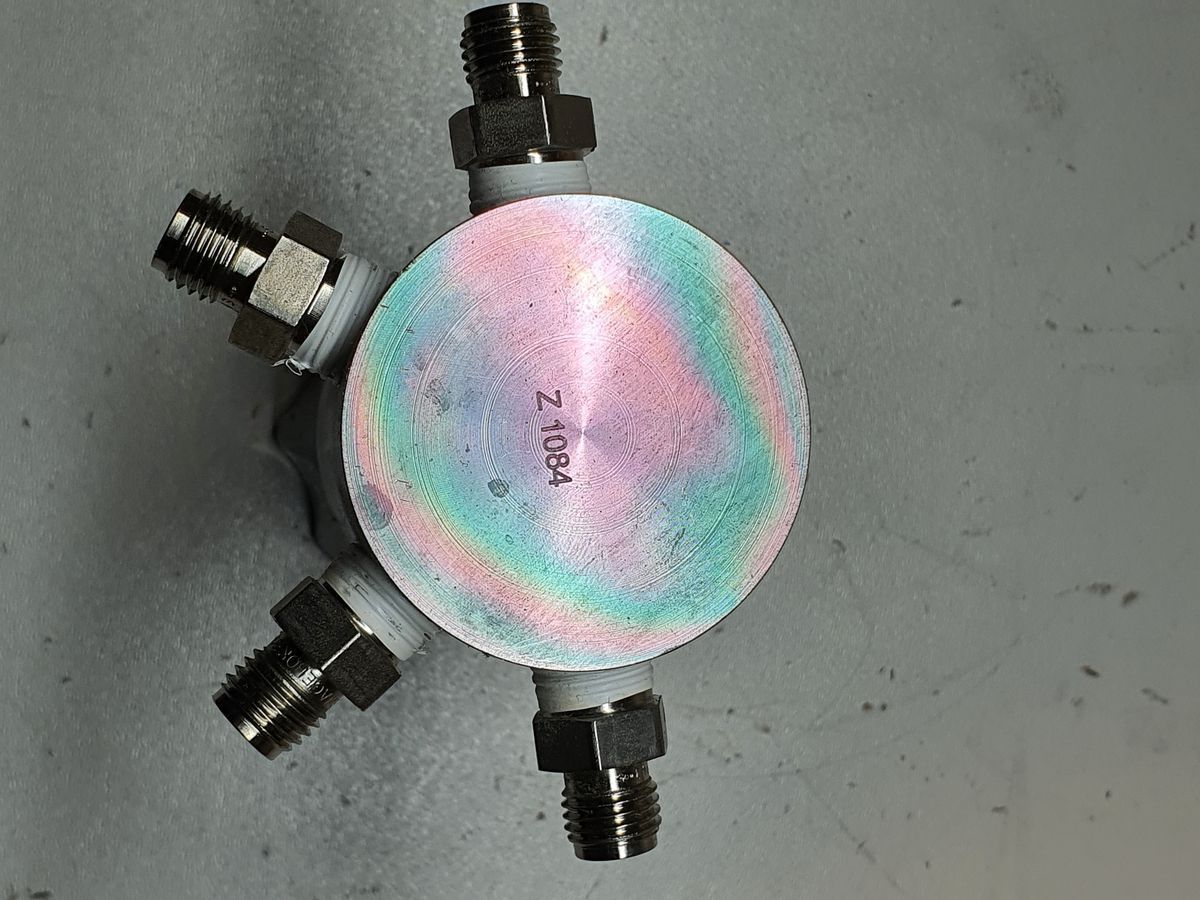

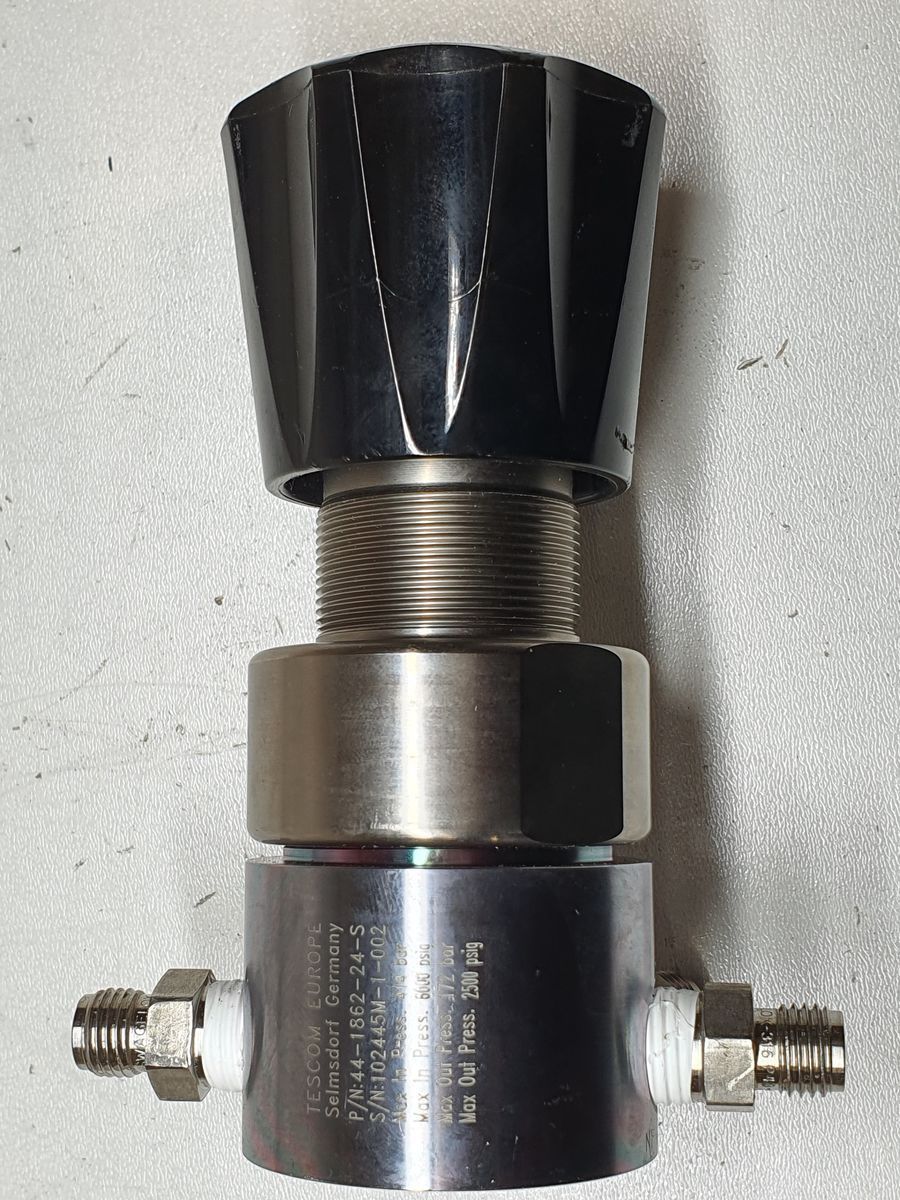

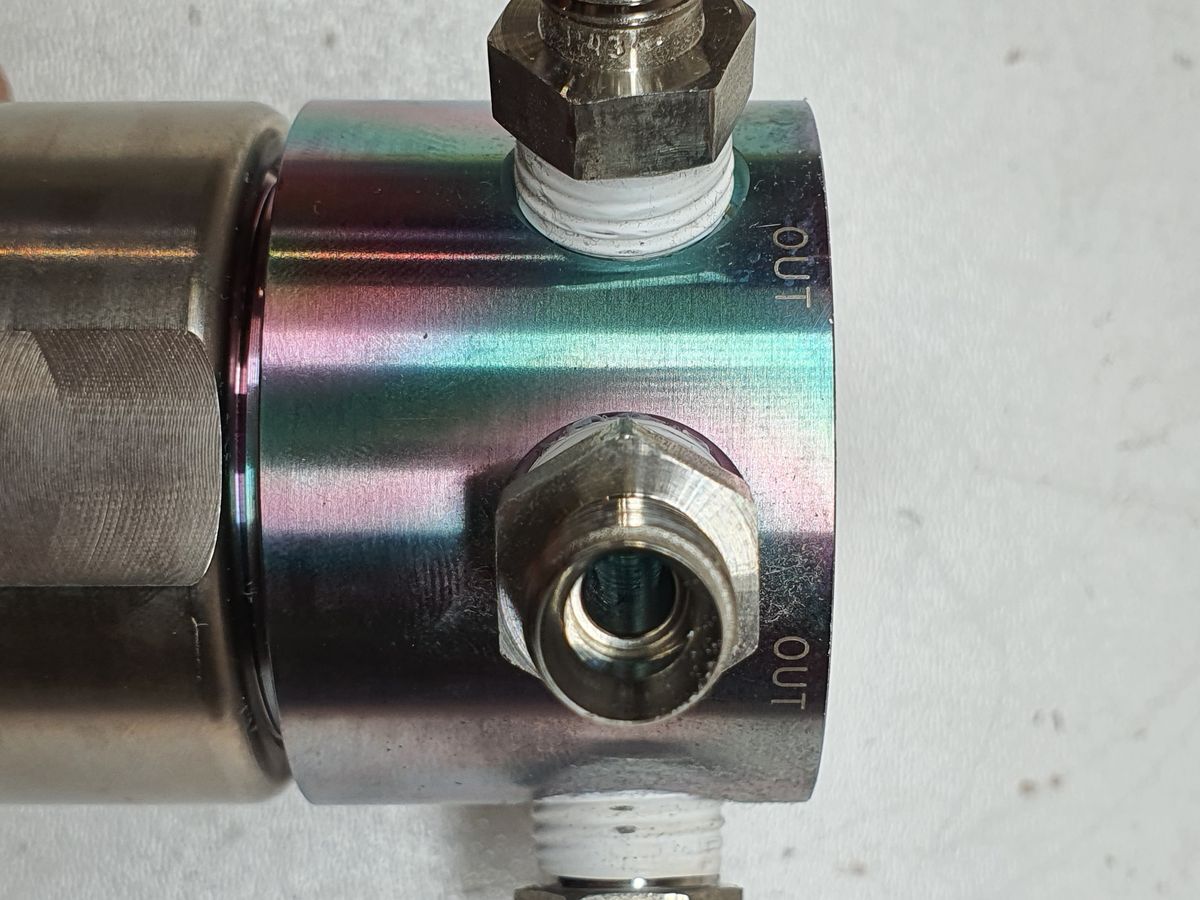

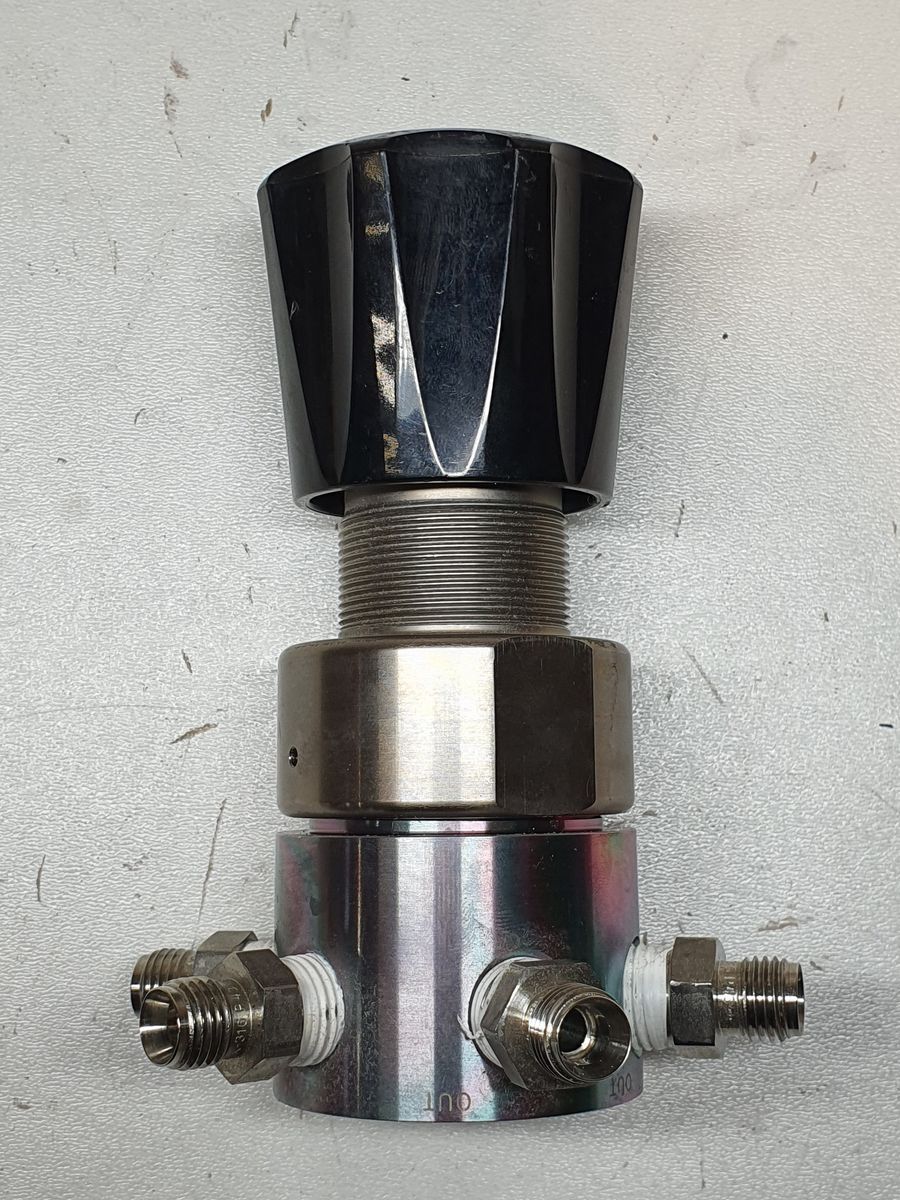

Tescom 44-1862-24S single-stage, pressure-reducing regulator

Category	Parameter	Specification
Operating Parameters	Model	44-1862-24
	Series	Tescom 44-1800 Series
	Regulator Type	Single-stage, pressure-reducing
	Maximum Inlet Pressure	414 bar / 6000 psi
	Rated Outlet Pressure Range	0–172 bar / 0–2500 psi
	Flow Capacity	Cv = 0.06 (at 3500 psig inlet)
	Internal Leakage	Bubble tight (internal)
	Proof Pressure	150 % of maximum rated
Materials & Ports	Body Material	Brass
	Seat Material	Teflon (PTFE) / Viton® (FKM)
	Diaphragm Material	316 Stainless Steel or Elgiloy® (depending on configuration)
	Port Size / Type	1/4″ NPT(F)
	Weight	Approx. 0.9 kg / 2 lbs (without gauges)
Environmental	Operating Temperature	−40 °C to +74 °C (−40 °F to +165 °F)
	Compliance	Designed to meet ANSI/ASME B31.3 pressure equipment criteria
