220842NRG02
Transformers

Tecnotrafo 220842NRG02

SKU: 44001
In Stock

Select Condition

Condition
Price
Quantity
Action
New
Excl. VAT: €100.00 (1 available)
Incl. VAT: €121.00
1
Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Warranty Information

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.
Warranty Periods by Condition
New 12 months
Refurbished 6 months
Used 3 months
We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

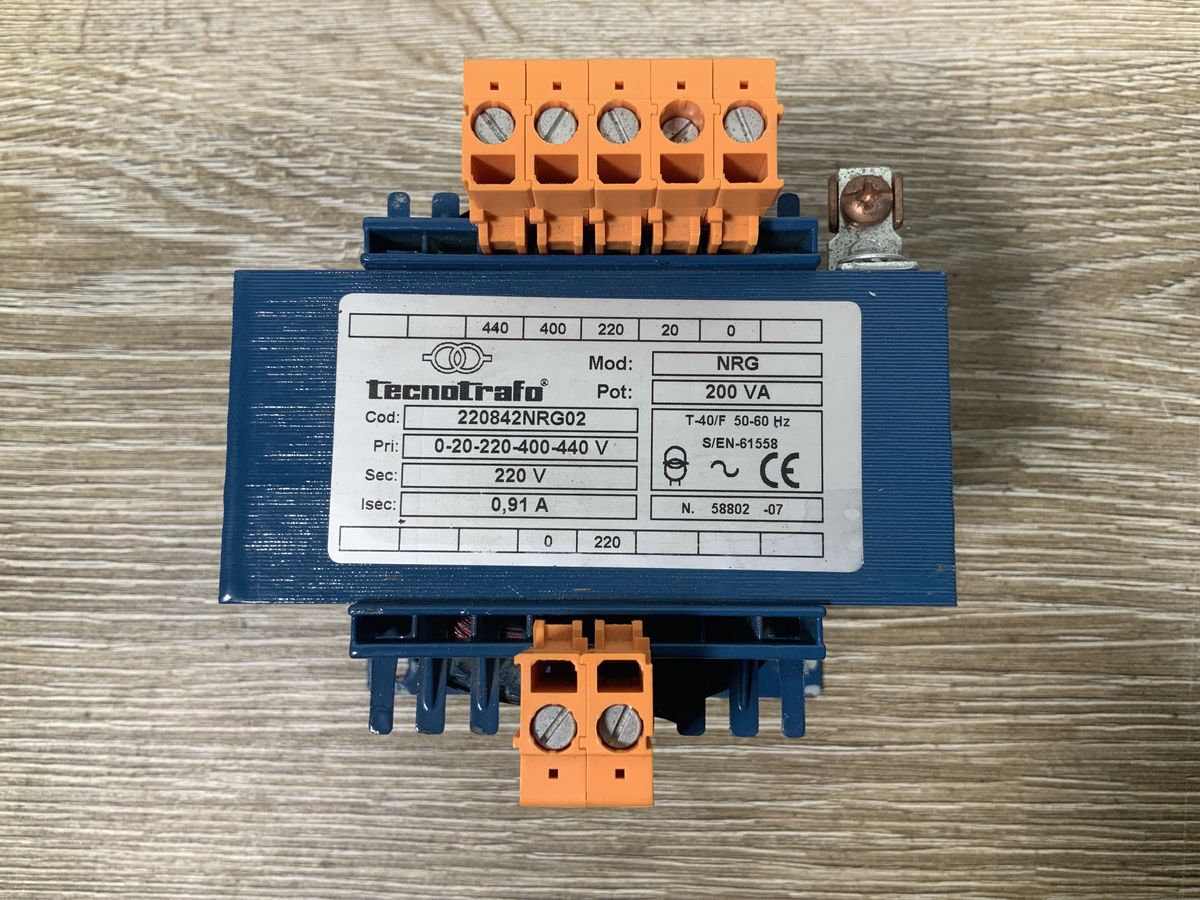

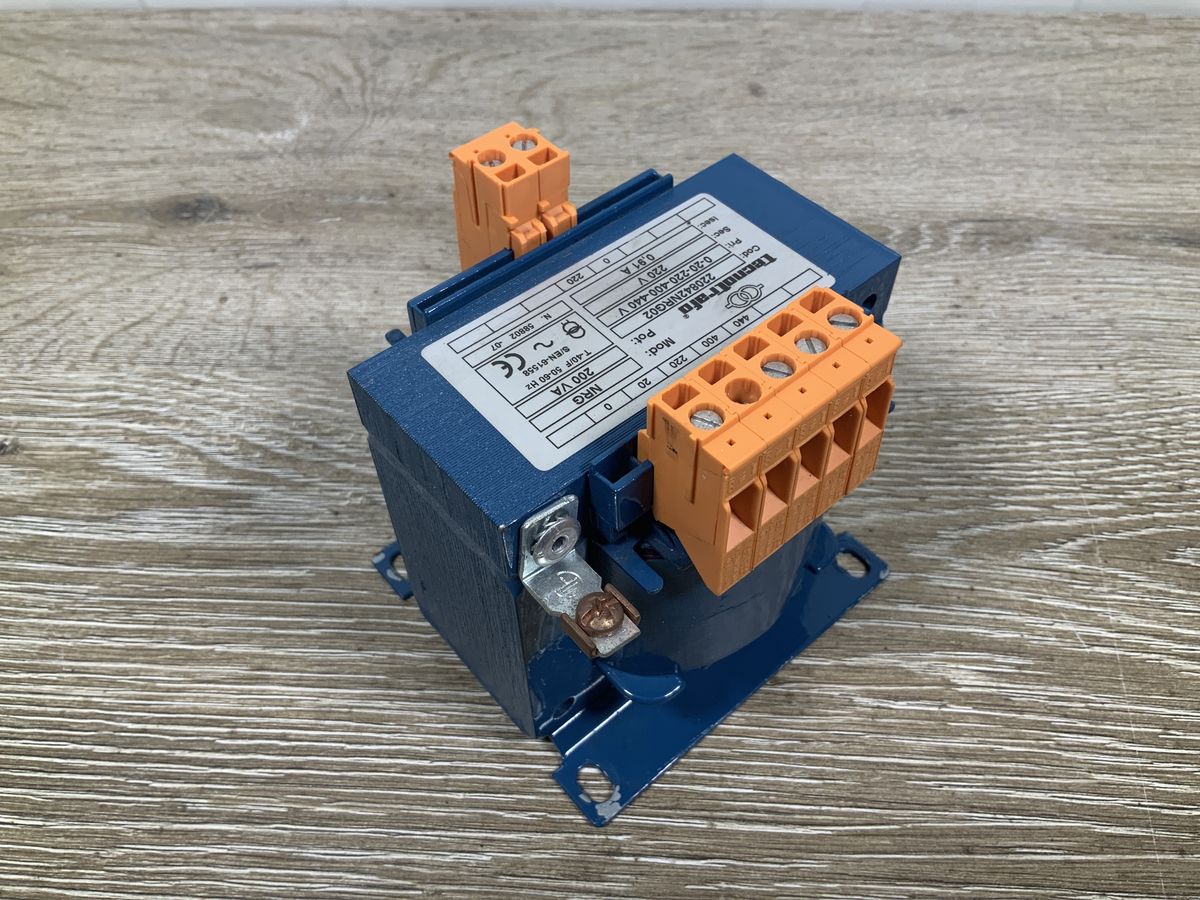

The Tecnotrafo 220842NRG02 is a 200 VA single-phase industrial control transformer. It features multi-tap primary voltage inputs for 0-20-220-400-440 V and a secondary output voltage of 220 V at 0.91 A. Designed for panel and control box installation, it includes top and bottom screw-terminal connection blocks.

Specifications – 220842NRG02

Parameter Specification
Power Rating 200 VA
Primary Voltage 0-20-220-400-440 V
Secondary Voltage 220 V
Secondary Current 0.91 A
Frequency 50-60 Hz
Temperature / Insulation Class T-40/F
Standard EN-61558
×
