Pneumatic Actuators

Swagelok Whitey 131SR / SS-42GS4-31C

SKU: 4006

In Stock

Used
Sourced from working environment

Excl. VAT: €250.00 (2 available)

Incl. VAT: €302.50

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Warranty Periods by Condition

New 12 months

Refurbished DOA

Used DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

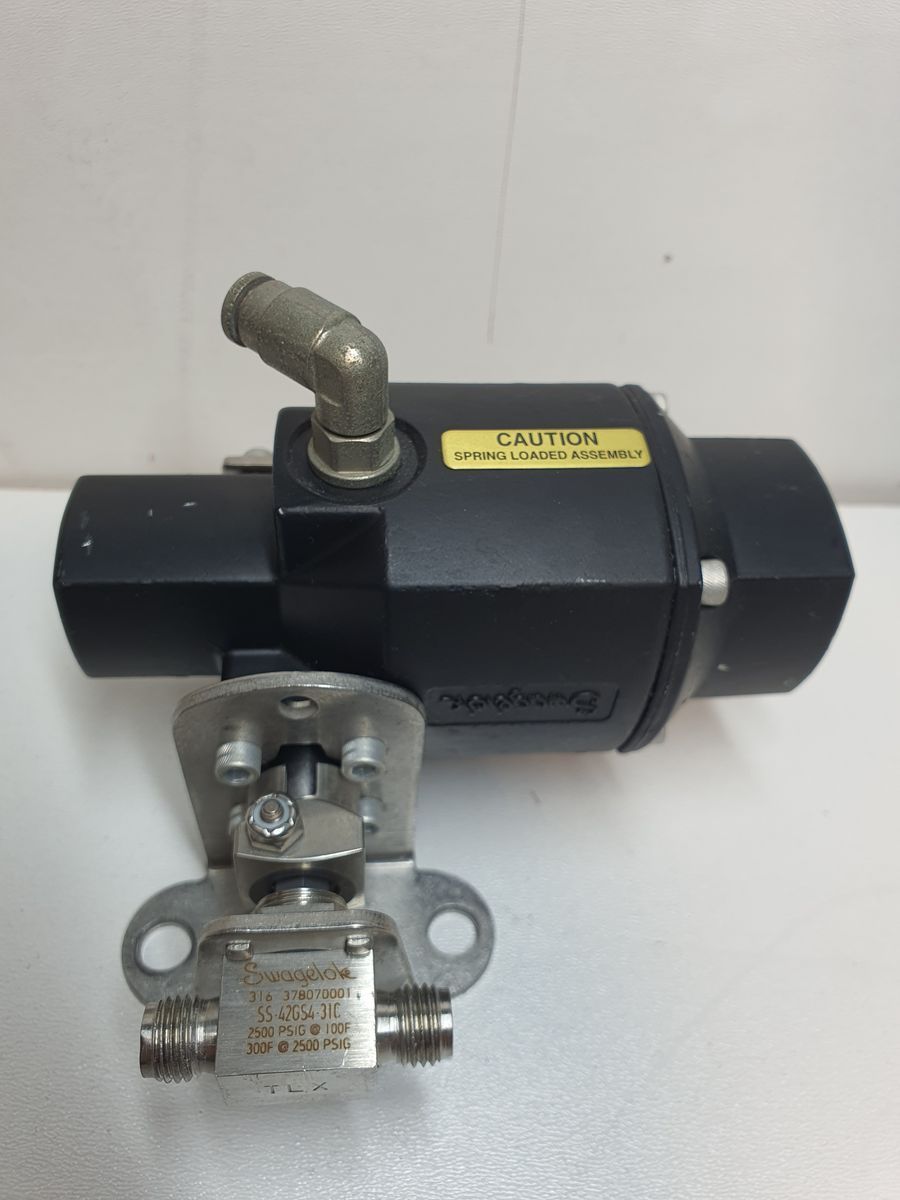

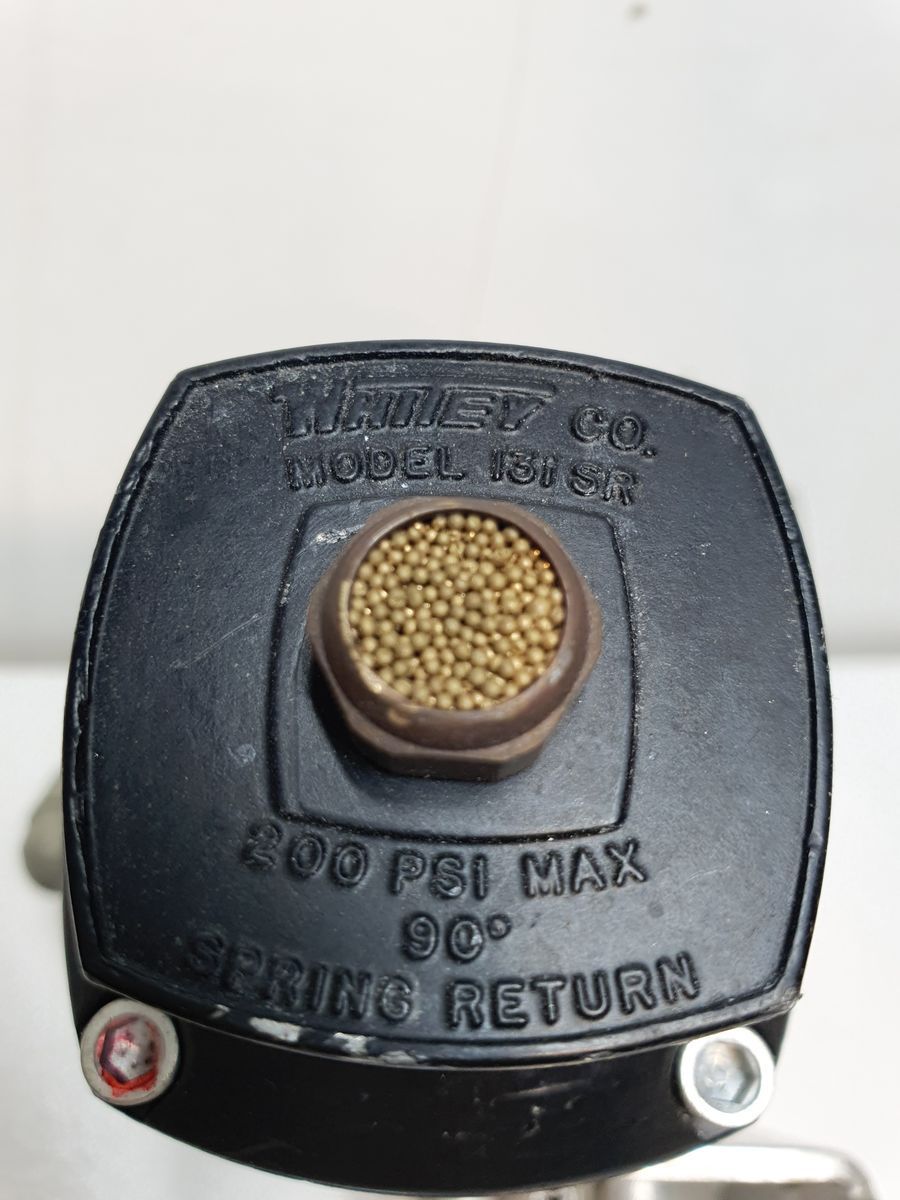

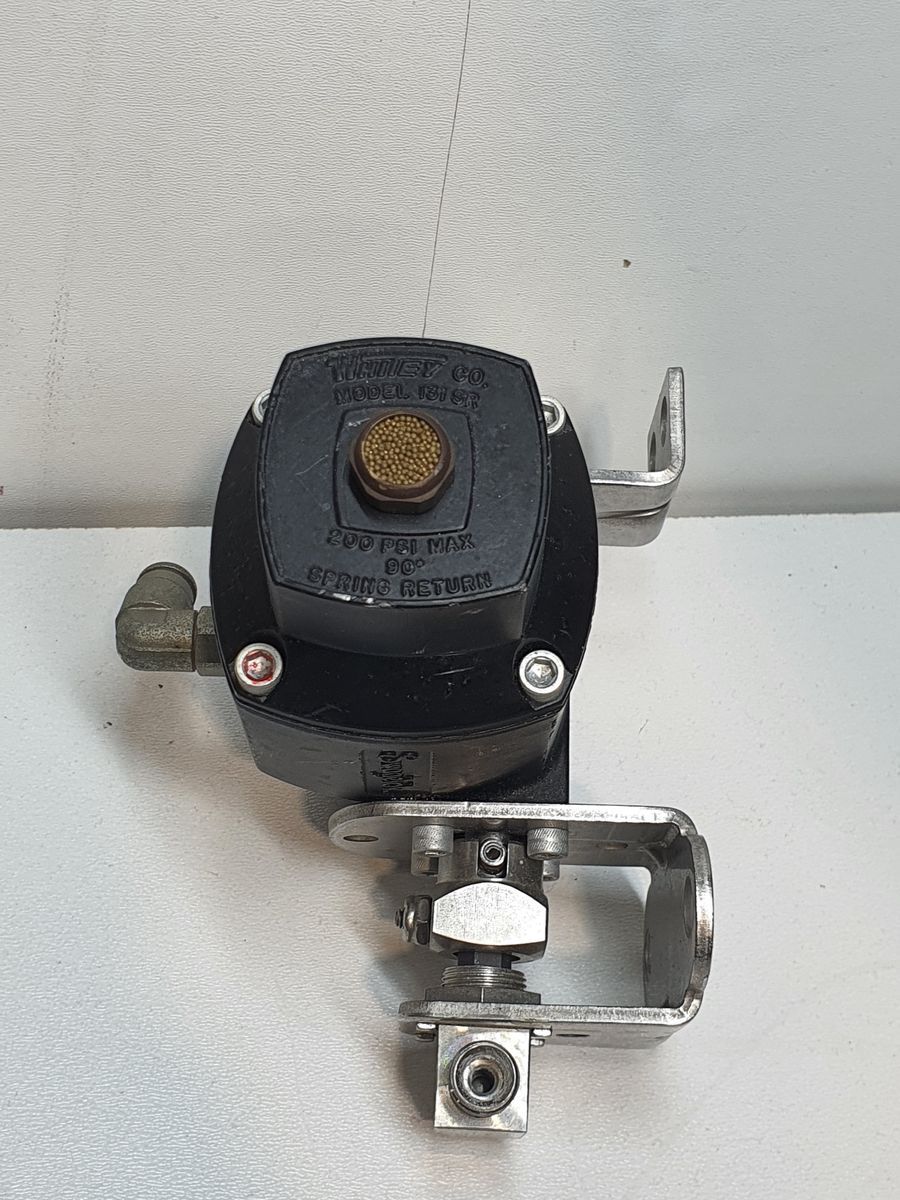

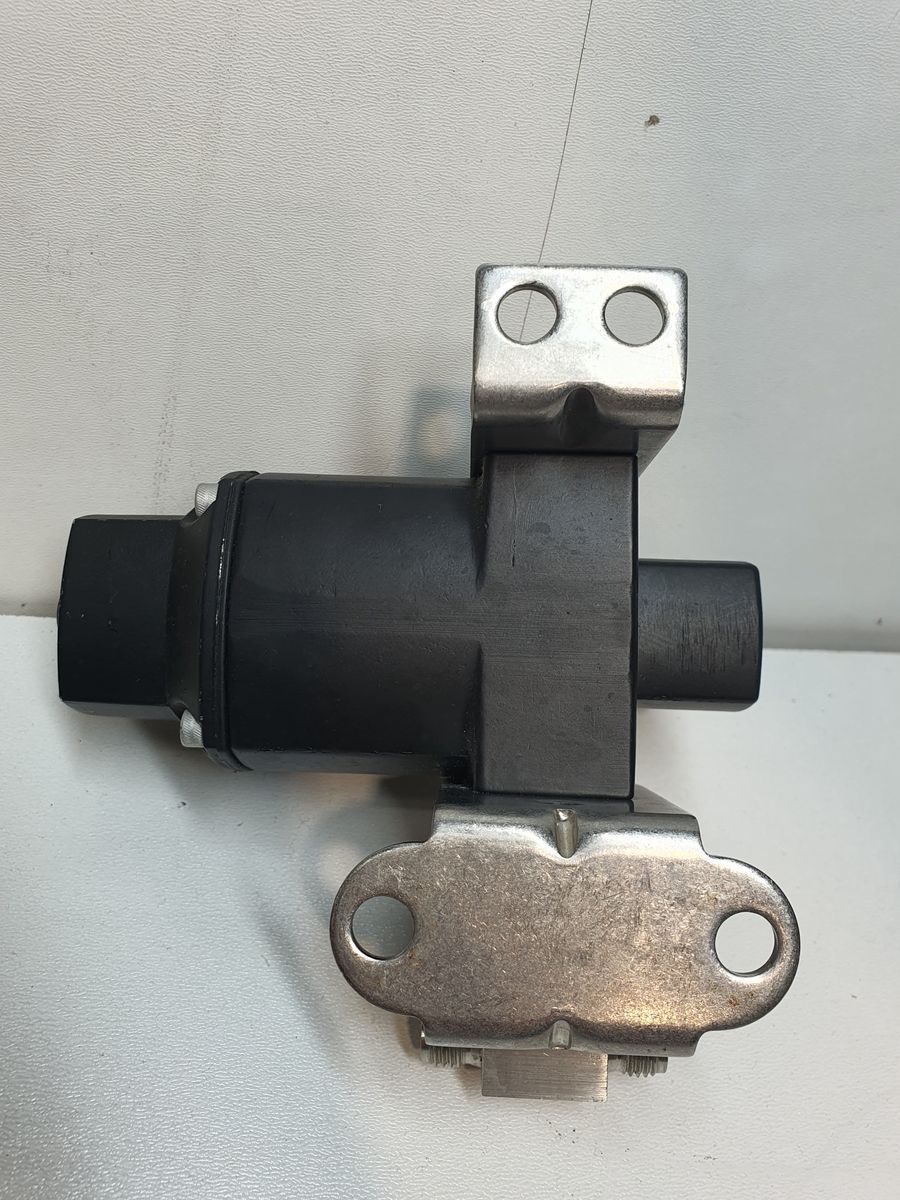

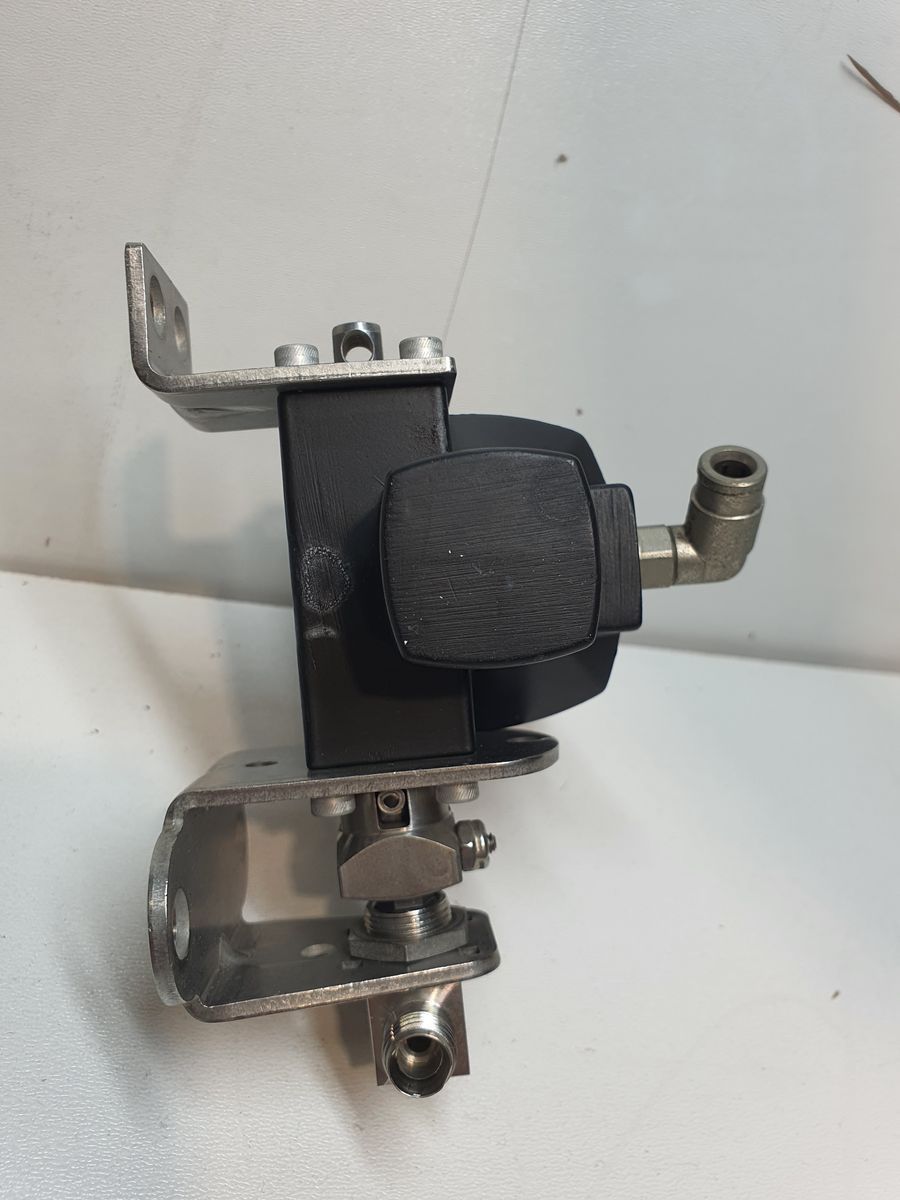

Swagelok Whitey 131 SR Actuator

Category	Parameter
Actuator Type	Pneumatic, spring-return (single-acting)
Rotation Angle	90° (quarter-turn), suitable for ball and similar valves
Series	131 Series (compact, small-stroke, gear mechanism)
Air Displacement	~1.5 in³ (24.6 cm³) – compact design for lightweight valves/assemblies
Weight	0.7 kg
Maximum Recommended Air Pressure	200 psi (13.8 bar) – maximum pneumatic supply pressure for the actuator
Operating Medium	Standard compressed air or inert gas
Operating Temperature Range	−20 °F to +200 °F (−28 °C to +93 °C)
Housing	Anodized cast aluminum alloy with black urethane exterior — lightweight yet strong for industrial use
Piston	Cast aluminum alloy — durable and corrosion-resistant for pneumatic cycles
Output Shaft	Hardened stainless steel 416 — high strength for reliable valve stem operation

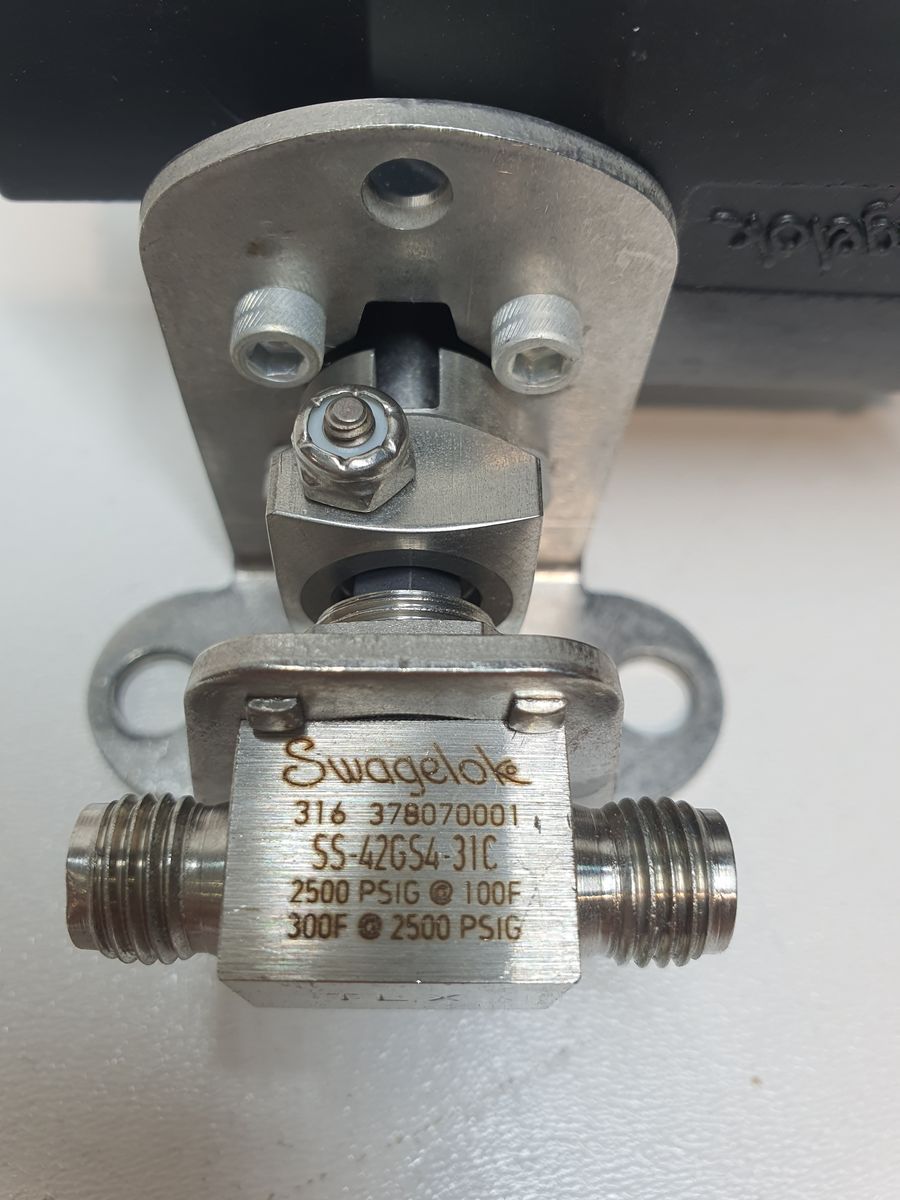

Swagelok Valve Body SS-42GS4-31C:
- Material: 316 stainless steel
- Pressure range: 2500 PSIG
- Temperature range: 100°F - 300°F
