Regulators

SMC EIW215

SKU: 8005

In Stock

Used

Excl. VAT: €40.00 (1 available)

Incl. VAT: €48.40

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Warranty Periods by Condition

New 12 months

Refurbished DOA

Used DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

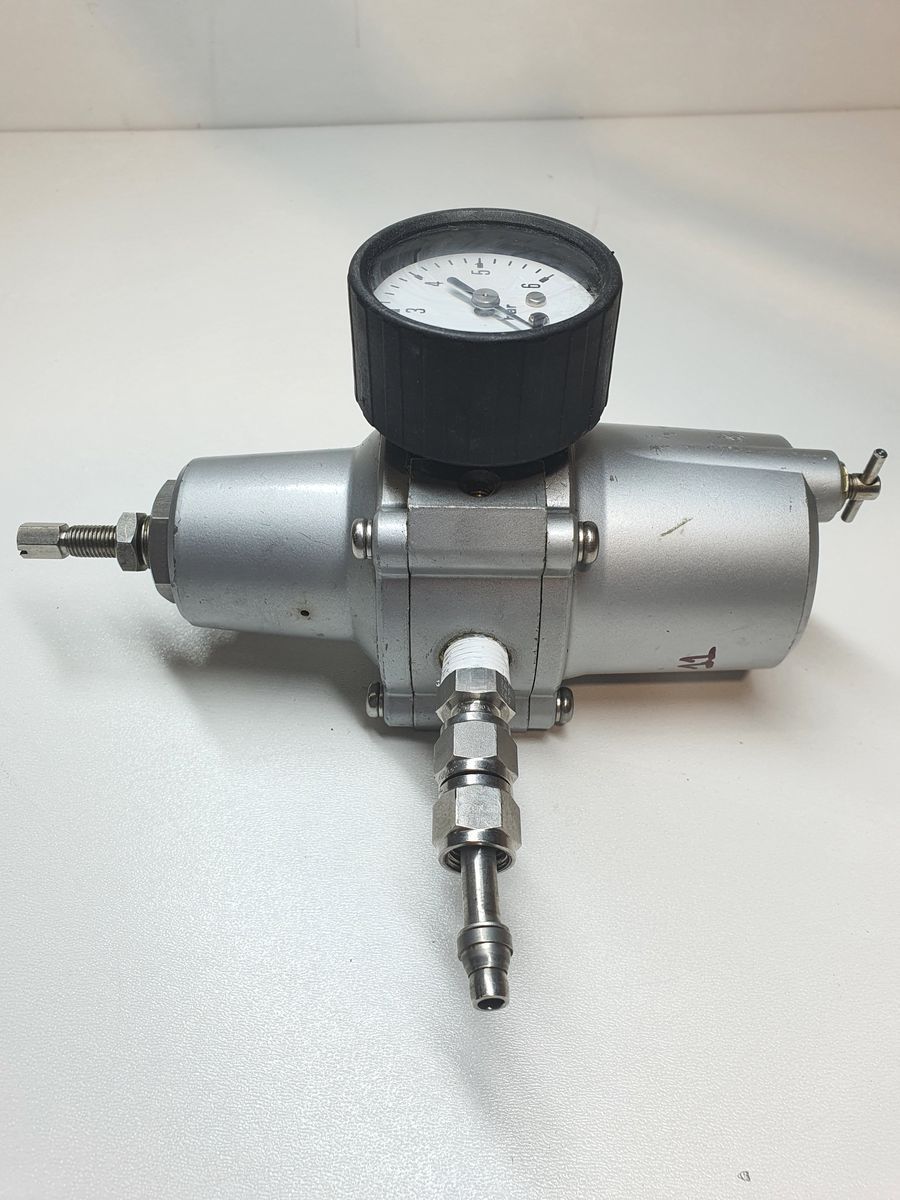

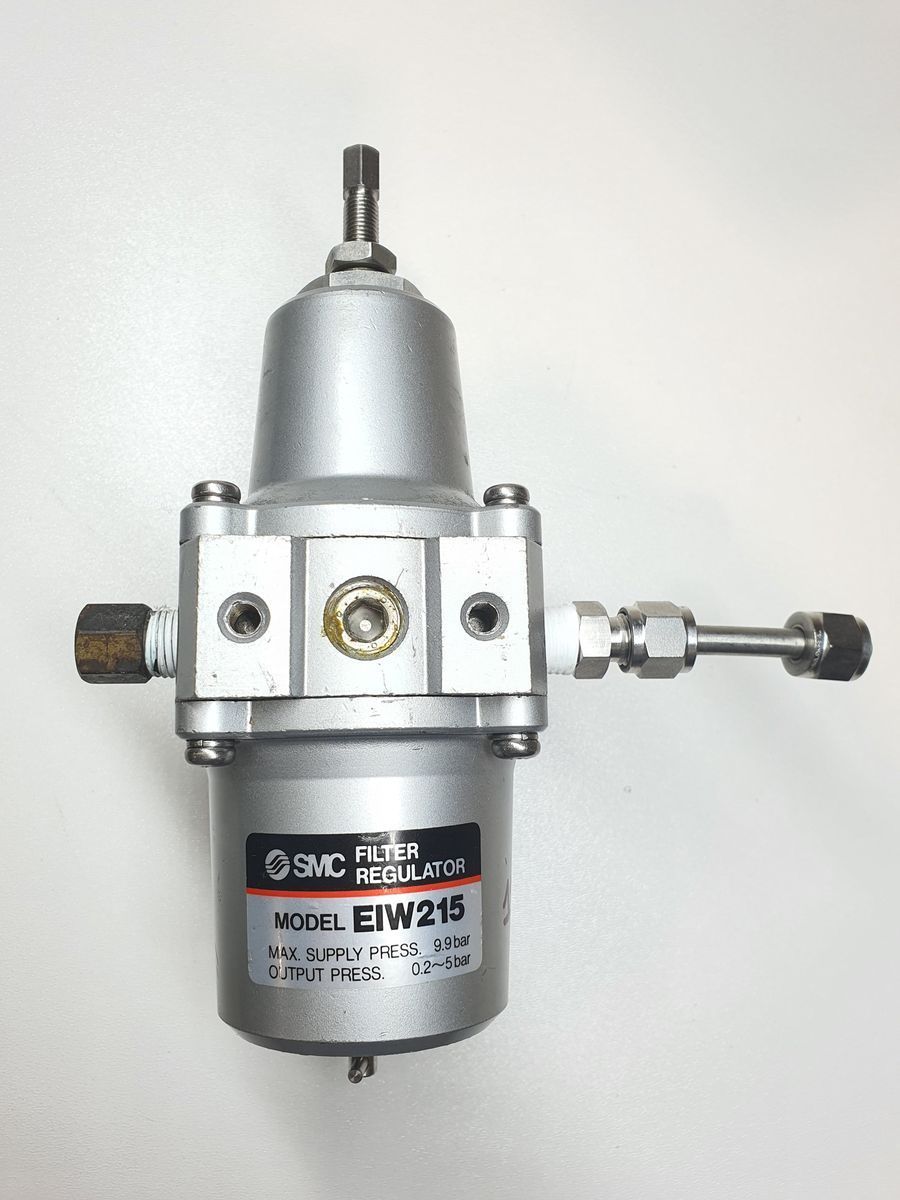

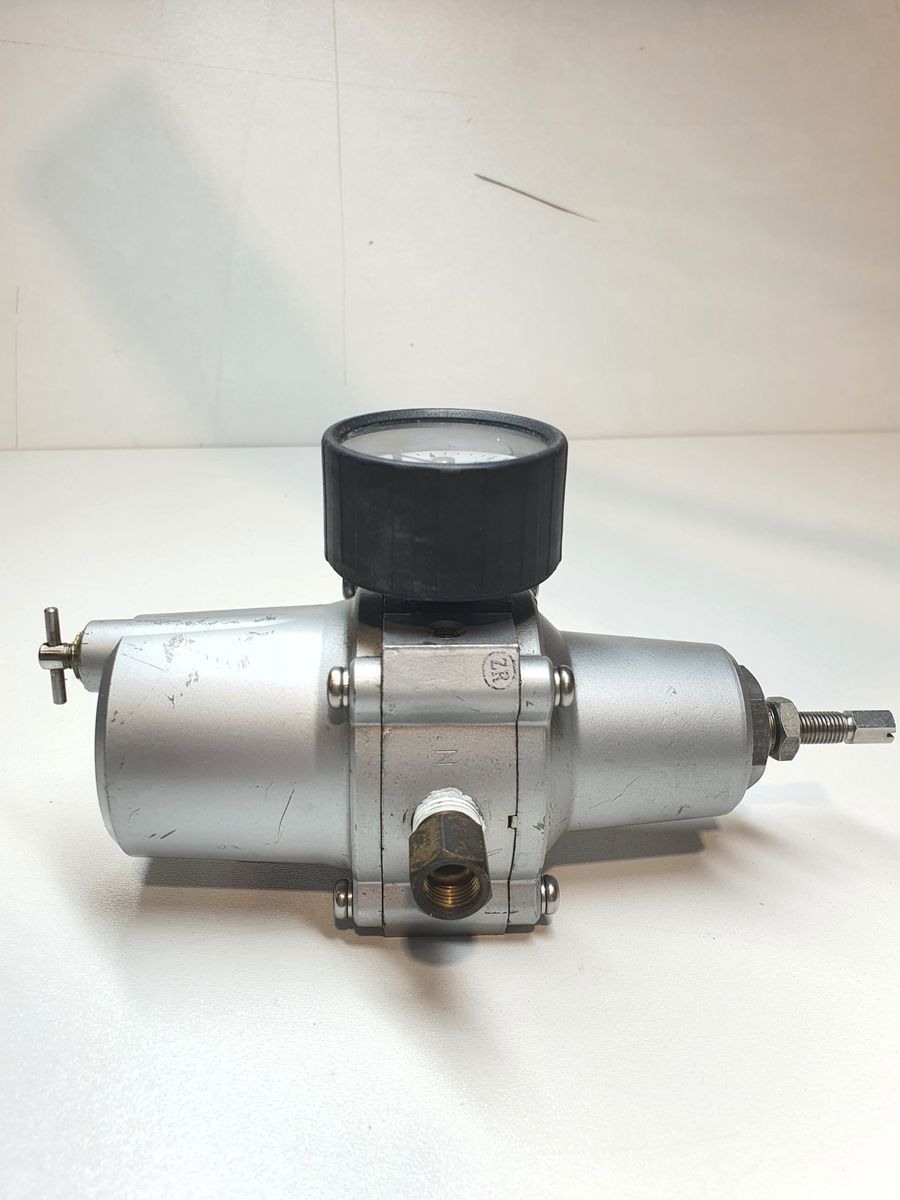

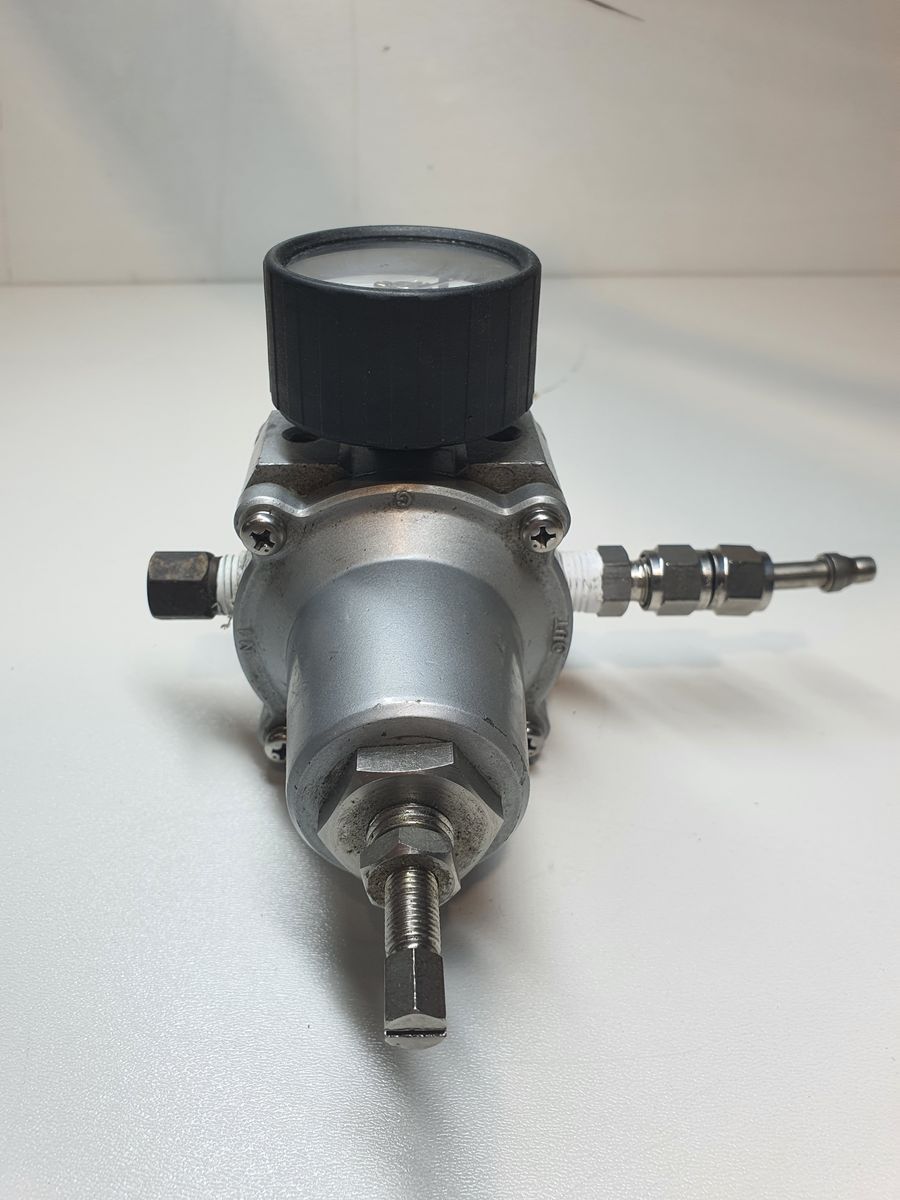

SMC EIW215 Filterregelaar – Compacte luchtvoorbereidingseenheid De SMC EIW215

Category	Parameter	Specification
Type	Combined filter + pressure regulator (air preparation unit)
Filtration	5 µm
Regulator Function	Maintains stable, constant outlet pressure even with fluctuating inlet pressure
	Adjustable Pressure Range	0.2–5 bar (0.02–0.5 MPa)
	Application	Accurate pressure control for sensitive pneumatic systems
Pressure & Operating Values	Maximum Supply Pressure	9.9 bar (1.0 MPa)
	Designed For	Standard industrial compressed air systems
	Flow Capability	Low to medium flow pneumatic circuits
Connections & Mounting	Port Size	1/4" NPT (standard for EIW215 model)
	Mounting Options	Inline or bracket mount, depending on installation
Construction	Housing	Industrial, corrosion-resistant materials
	Reservoir Type	Transparent reservoir for easy inspection (polycarbonate or metal depending on configuration)
	Drain Type	Manual or automatic (varies by configuration)
