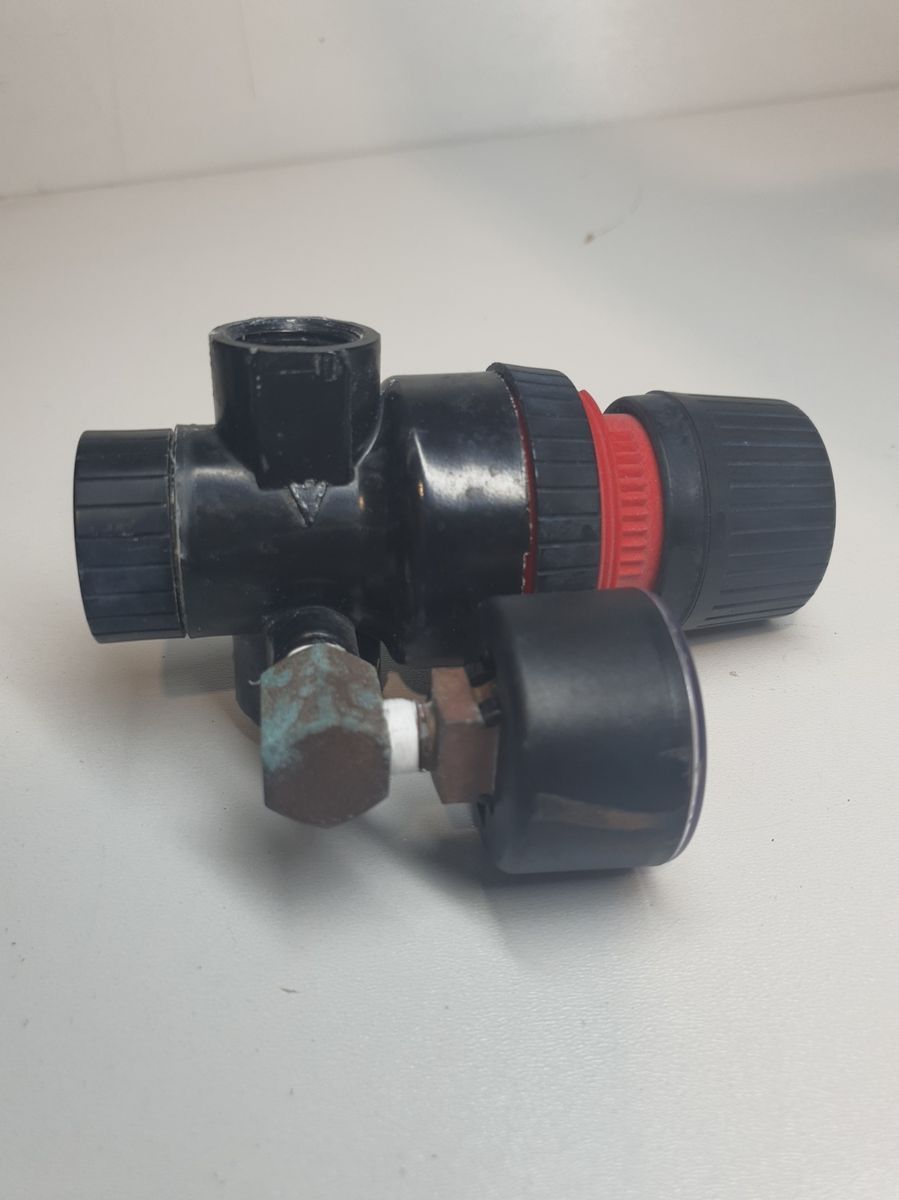

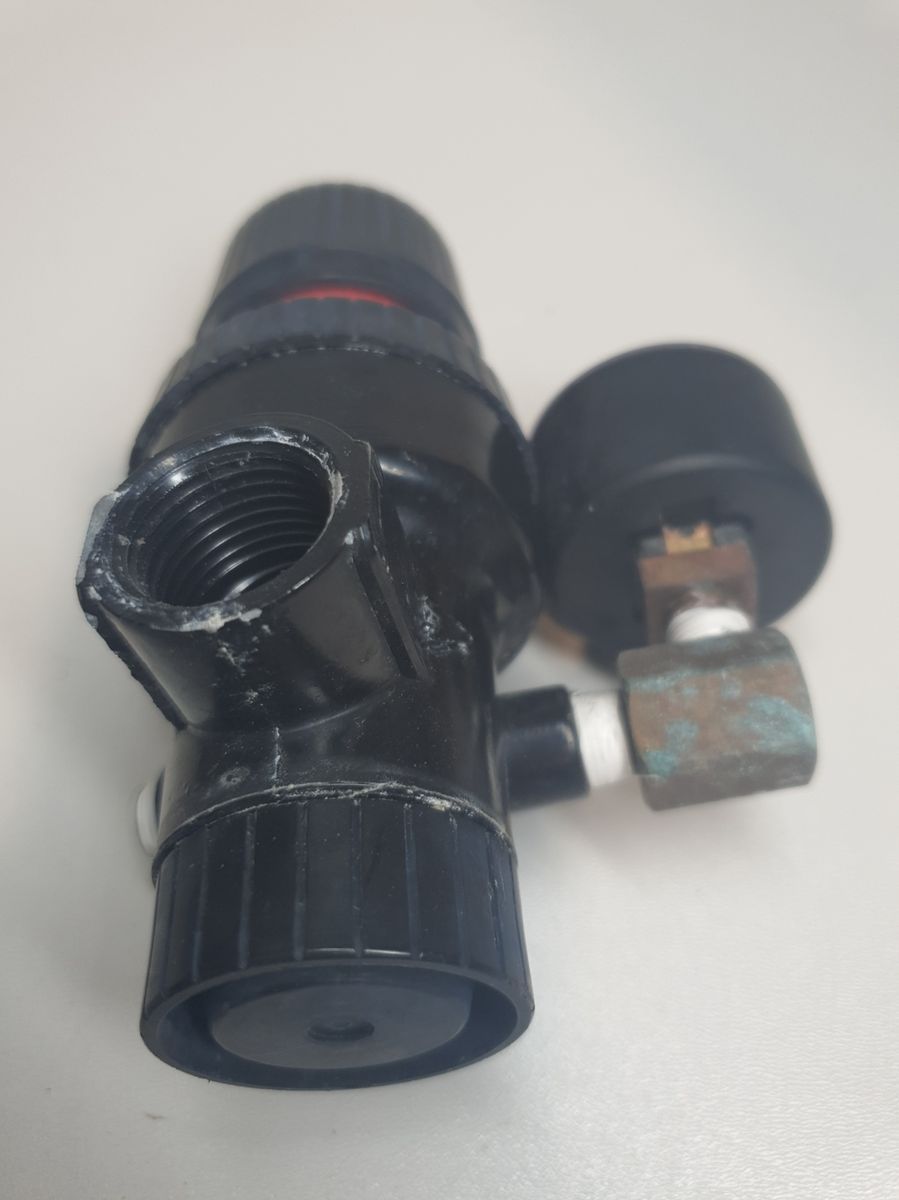

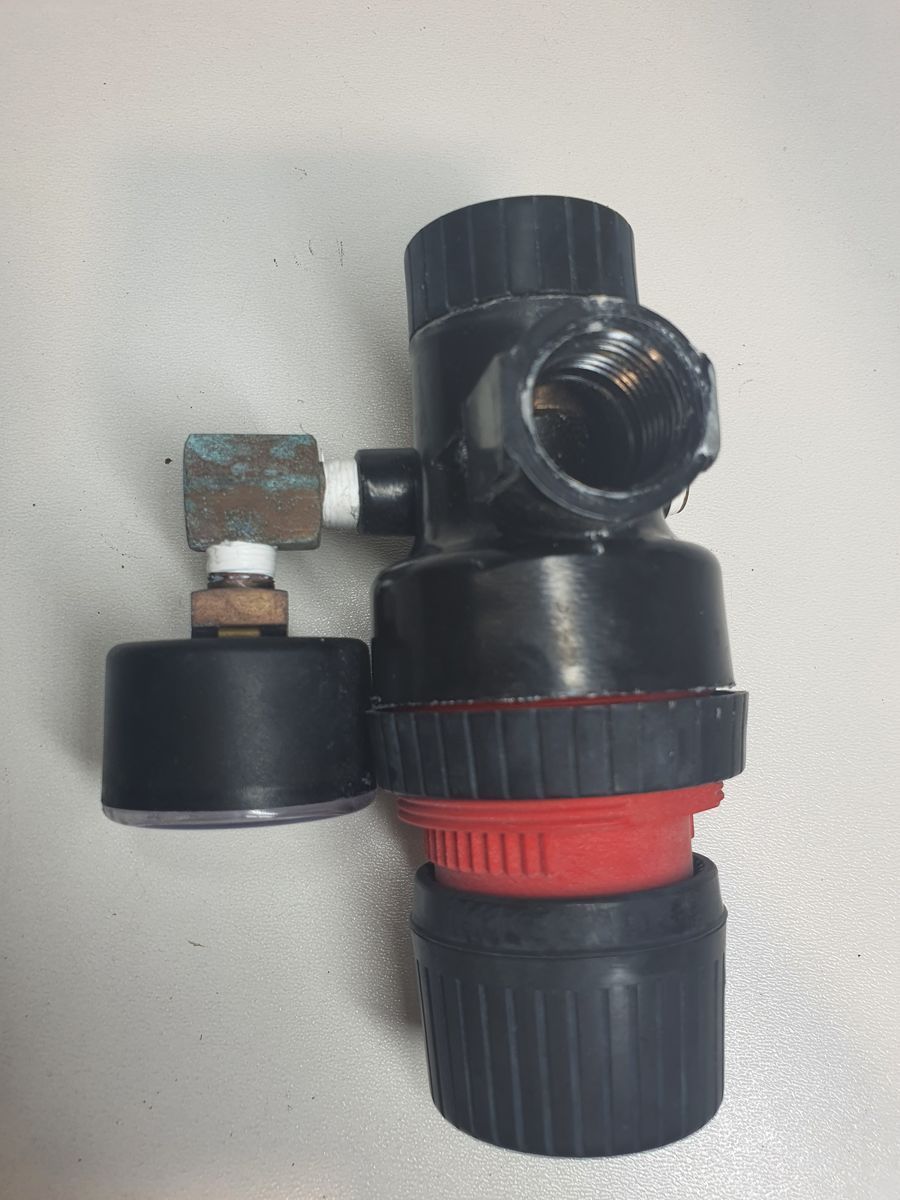

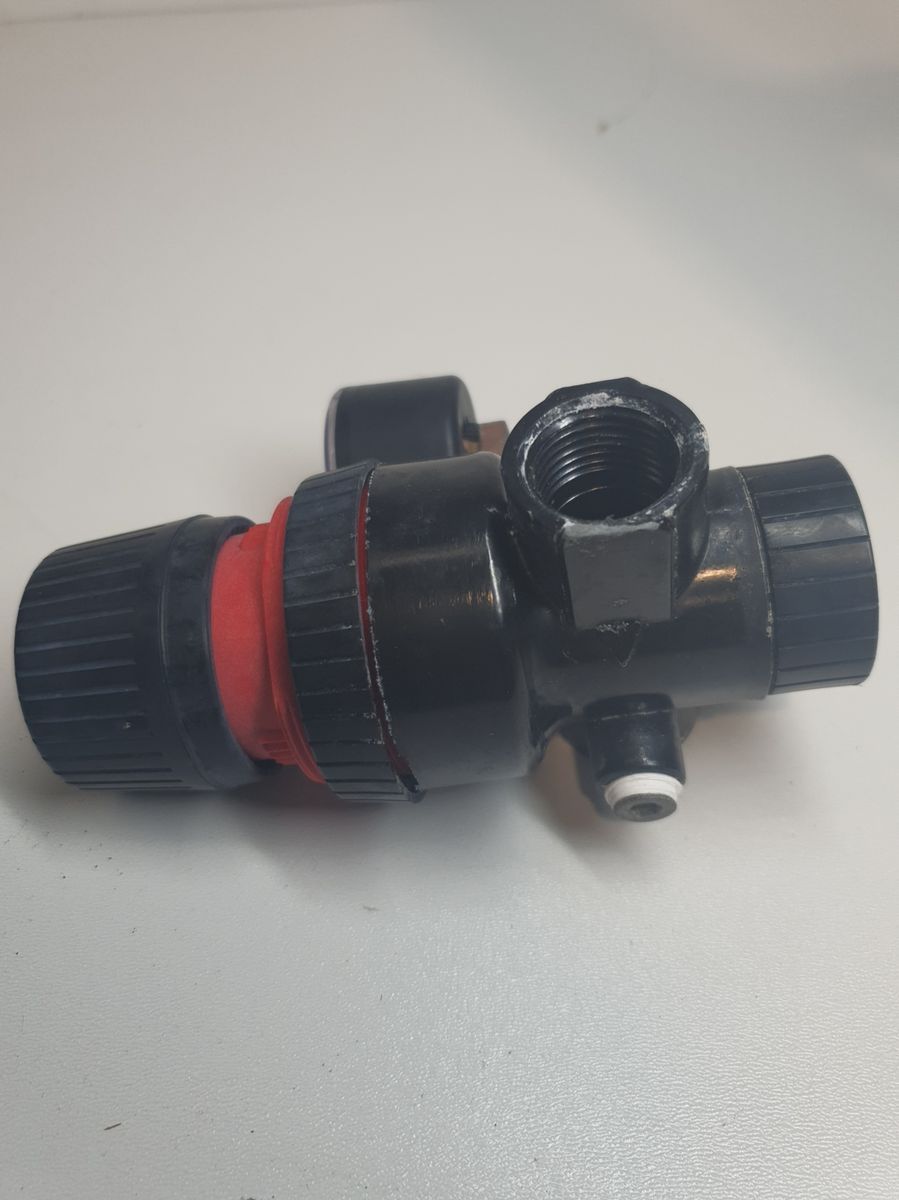

Monnier Pira AR2000 Serie Luchtdrukregelaar met Manometer
| Parameter | Specification |
|---|---|
| Brand | Monnier Pira / AR Series |
| Model | AR2000-02 (G1/4″) |
| Product Type | Air pressure regulator with manometer |
| Medium | Compressed air |
| Maximum Working Pressure | 10 bar (1.0 MPa) |
| Adjustable Pressure Range | ~0.5–8.5 bar (0.05–0.85 MPa) |
| Connection | G1/4″ (female) |
| Nominal Flow | ~550 l/min (typical for AR2000) |
| Operating Temperature Range | ~5–60โฏ°C |
| Material | Aluminum alloy housing |
| Weight | ~0.2 kg |
| Seal / Valve Type | Overpressure / venting regulator (automatic venting upon pressure drop) |
