Contactor

finder 22.44.0.024.4310

SKU: 7028

In Stock

Used
Sourced from working environment

Excl. VAT: €50.00 (1 available)

Incl. VAT: €60.50

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Warranty Periods by Condition

New 12 months

Refurbished 6 months

Used 3 months

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

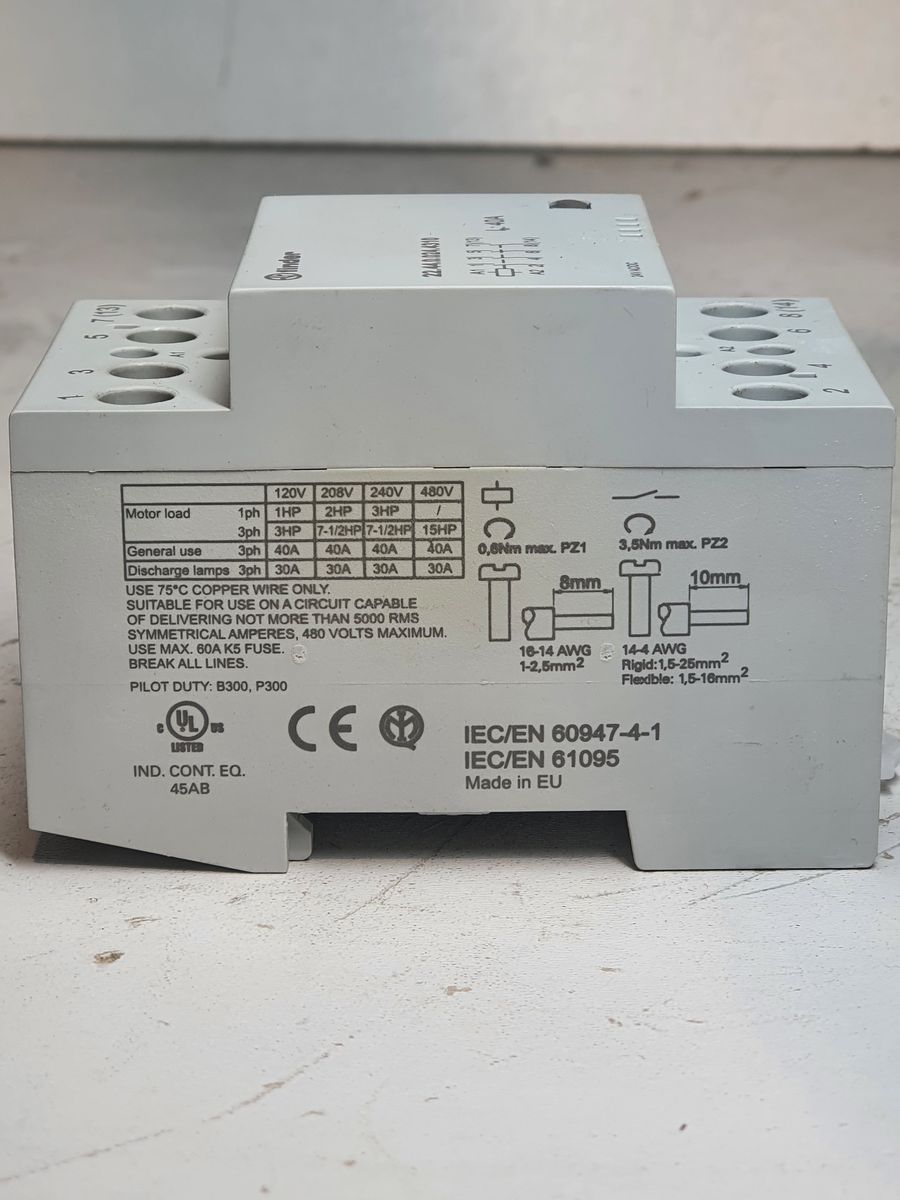

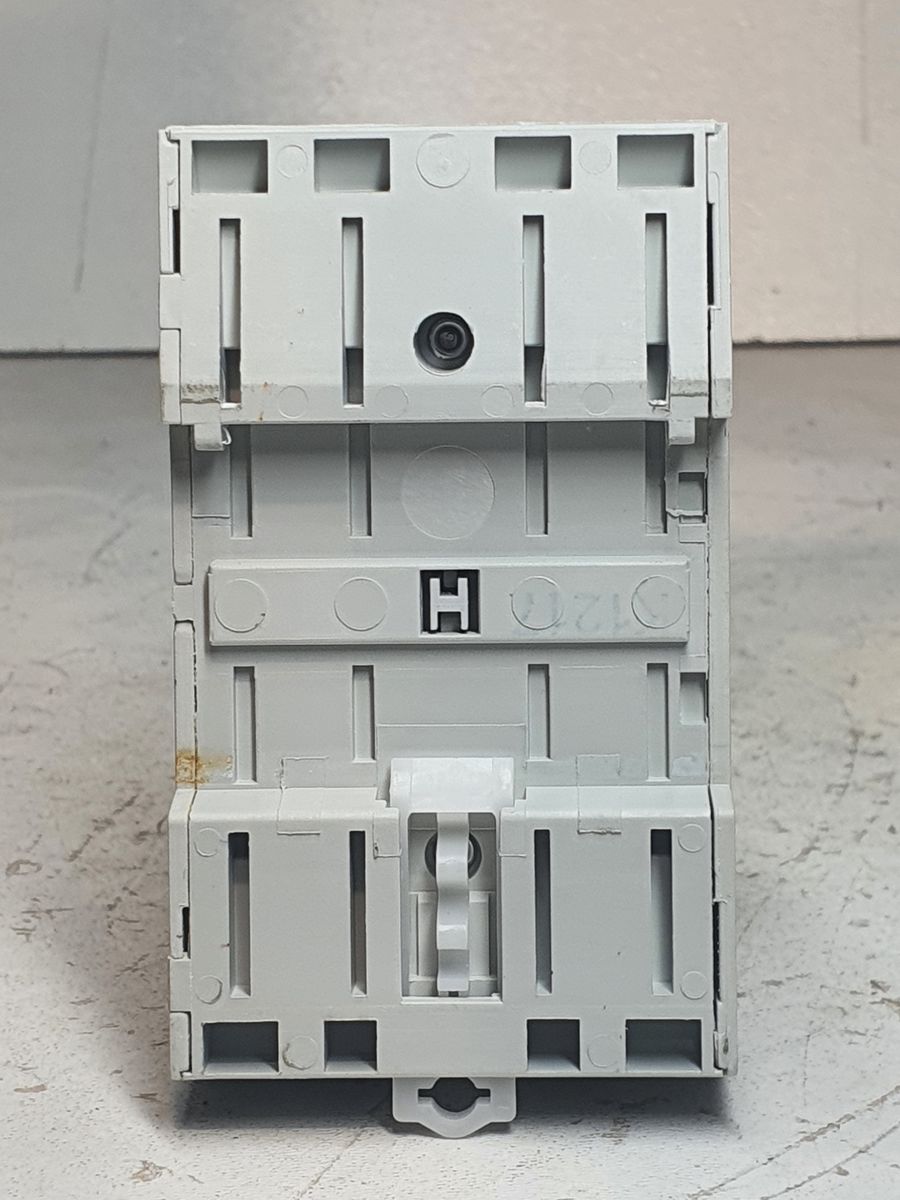

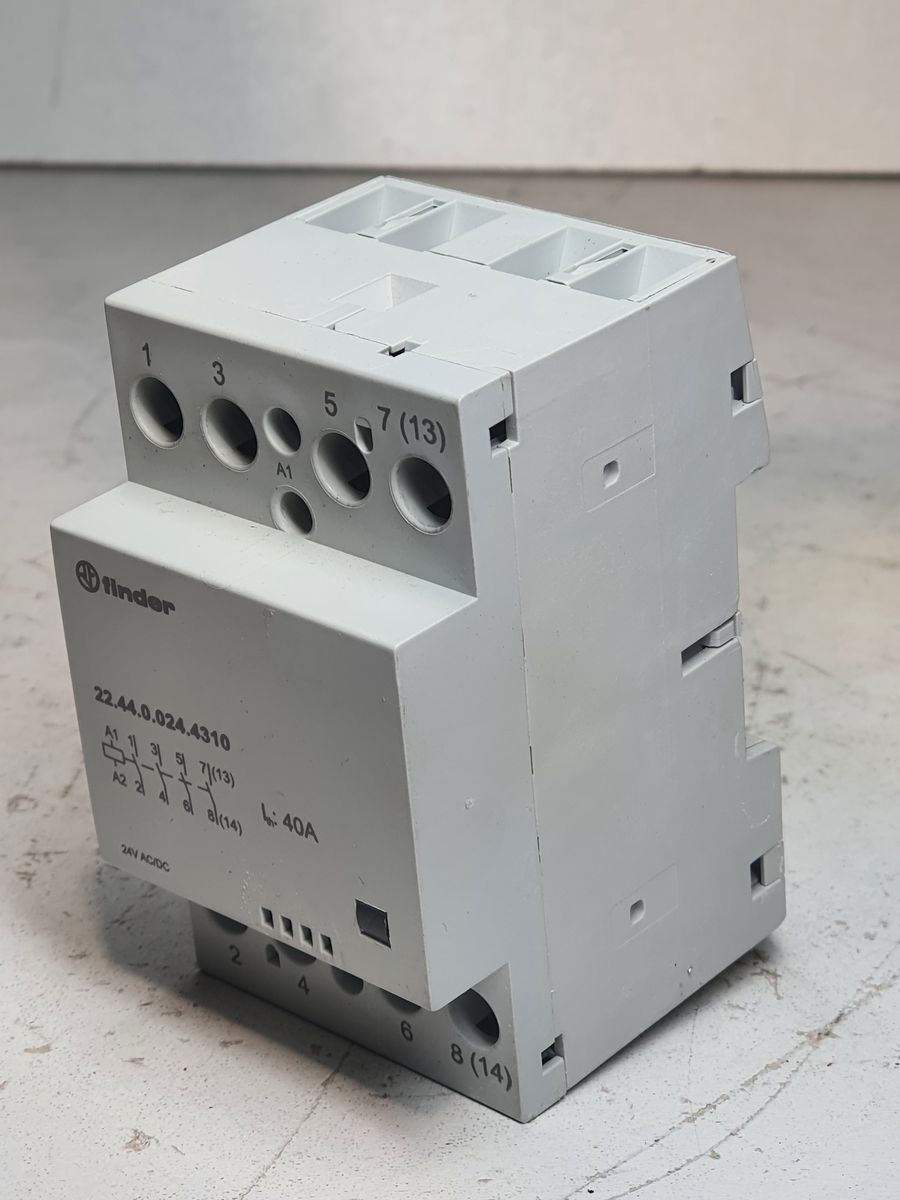

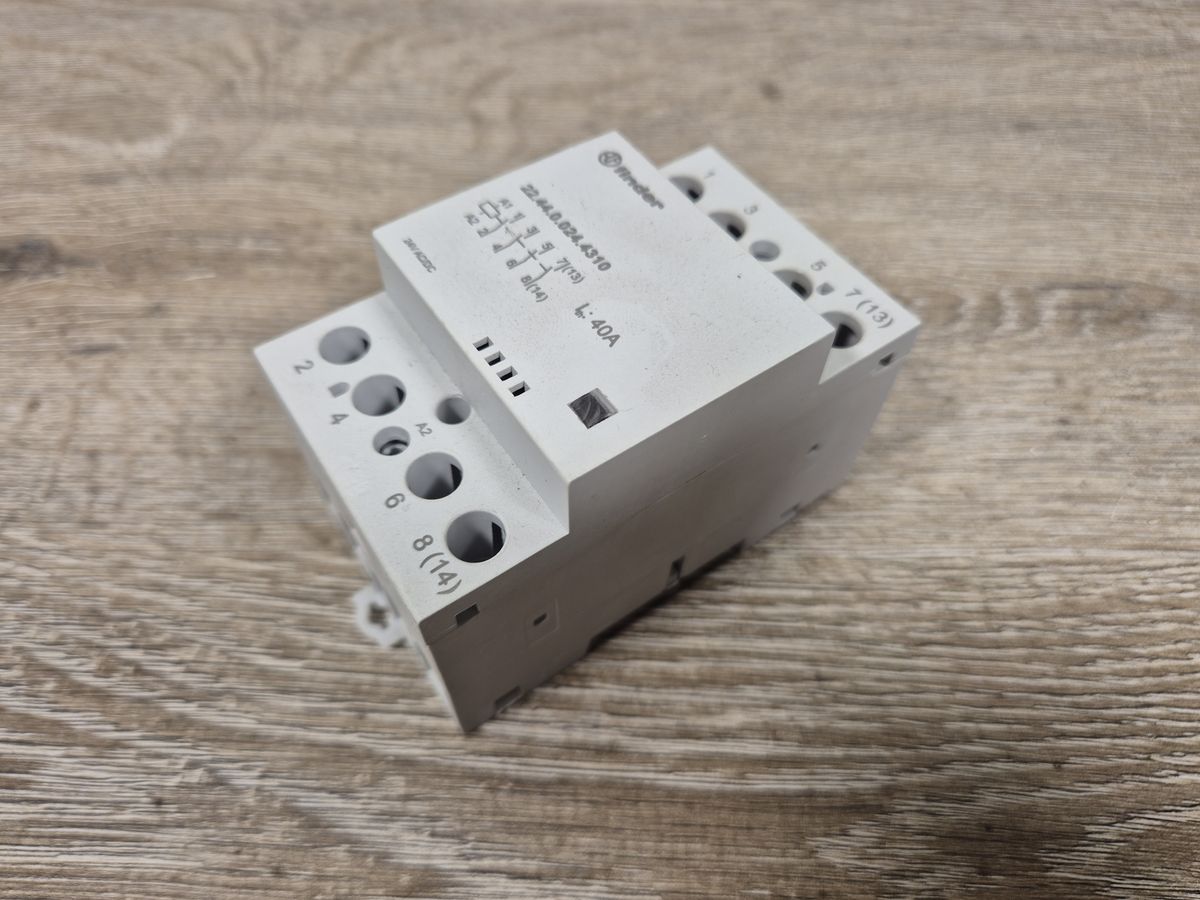

finder 22.44.0.024.4310 Magnetic switch

Specifications:

Attribute	Value
Rated Control Voltage at AC 50 Hz	24 V
Rated Control Voltage at AC 60 Hz	24 V
Rated Control Voltage at DC	24 V
Control Voltage Type	AC/DC
Rated Operational Current Ie (AC-1, 400 V)	40 A
Rated Operational Current Ie (AC-3, 400 V)	22 A
Rated Power (AC-3, 400 V)	11 kW
Modular Version (DIN Rail Mounting)	Yes
Number of Auxiliary Contacts (NO)	0
Number of Auxiliary Contacts (NC)	0
Main Circuit Connection Type	Screw terminal
Number of Main Contacts (NC)	0
Number of Main Contacts (NO)	4
Operating Voltage Range AC 50 Hz	20.40 – 26.40 V
Operating Voltage Range AC 60 Hz	20.40 – 26.40 V
Width	53.50 mm
Height	95.80 mm
Depth	63.10 mm
