TEMP

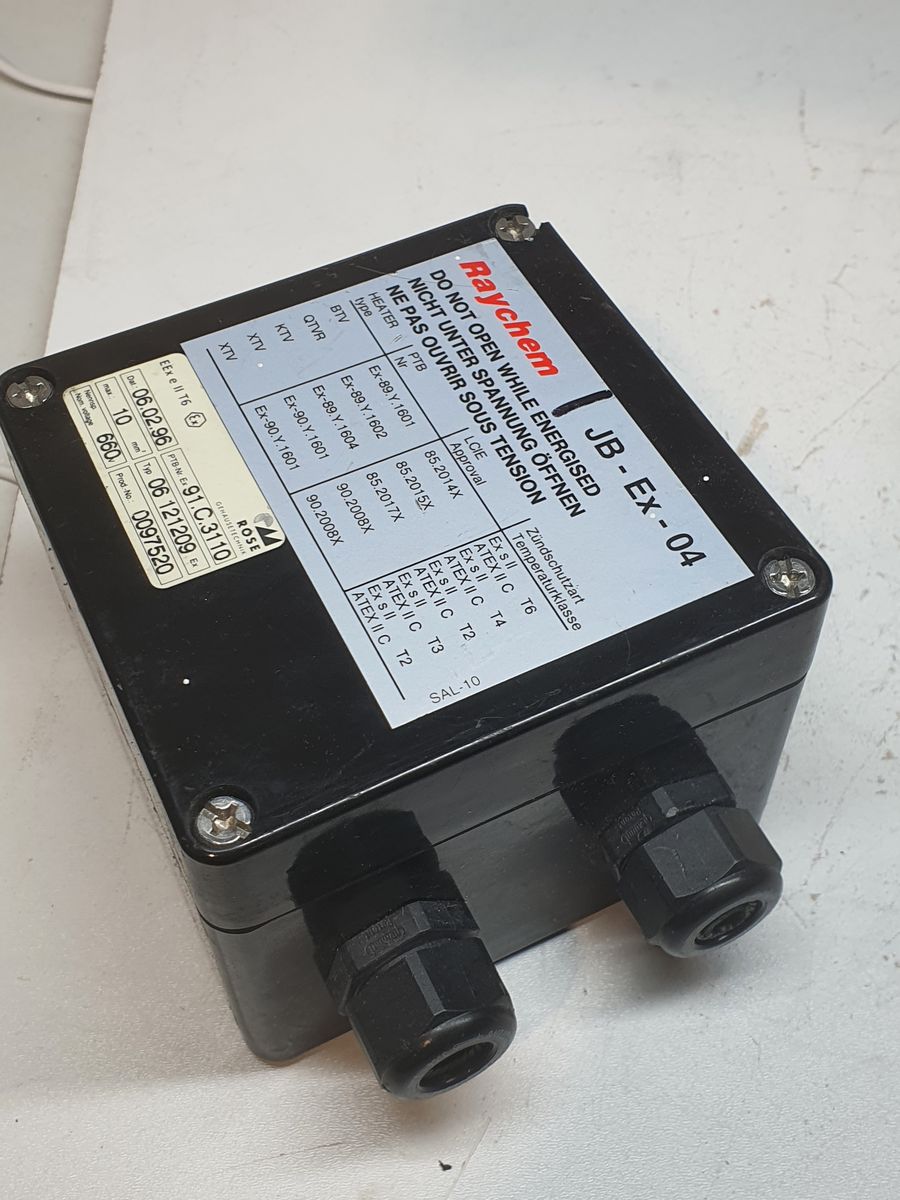

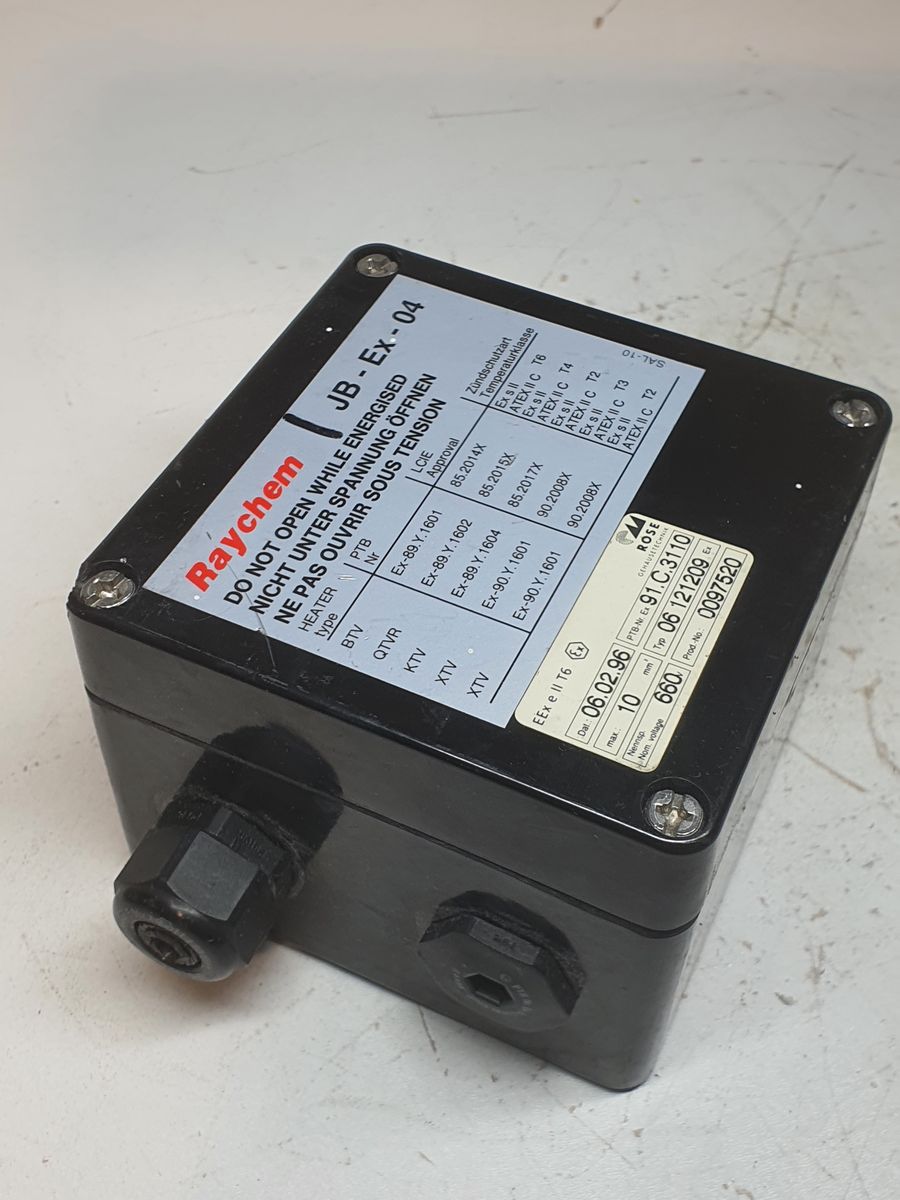

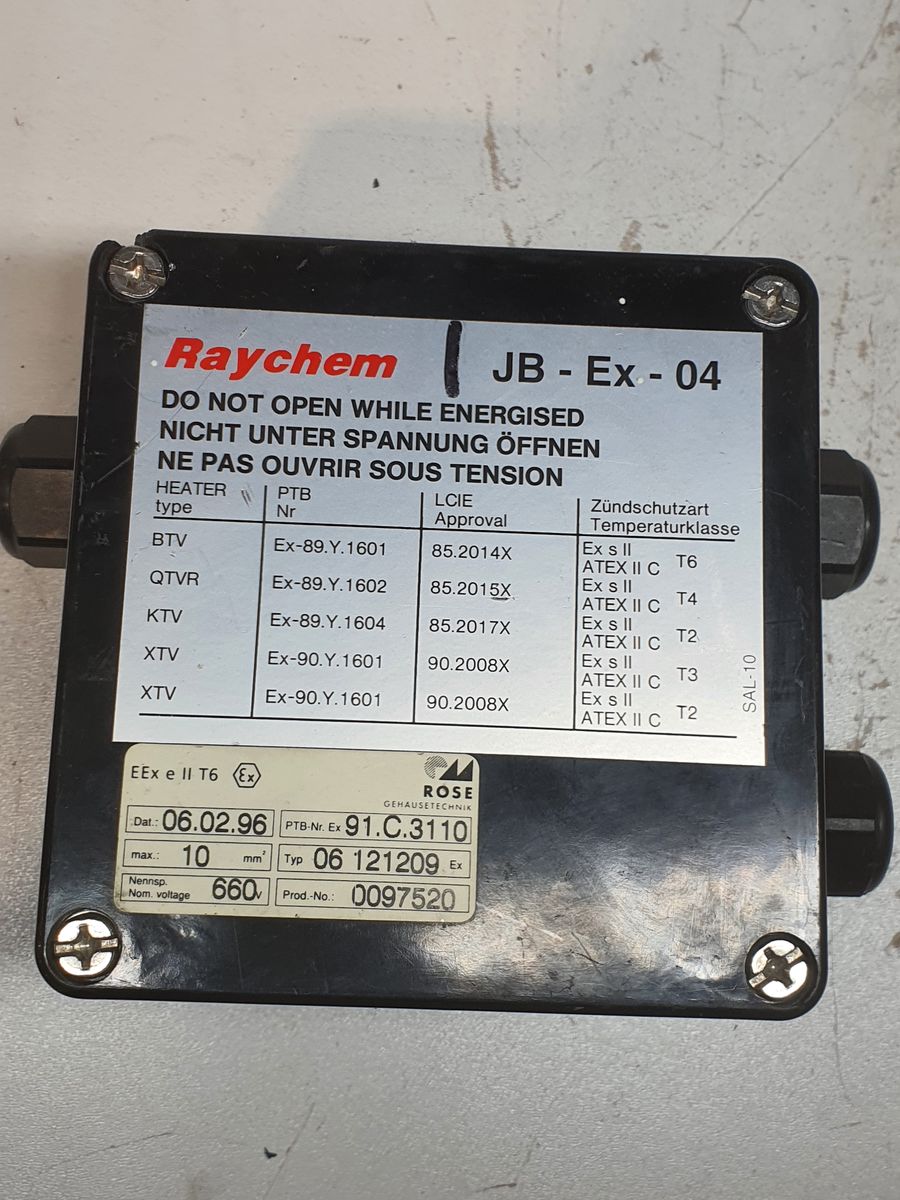

Raychem JB-Ex-04

SKU: 7051

In Stock

Used
Sourced from working environment

Excl. VAT: €100.00 (1 available)

Incl. VAT: €121.00

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Important: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Warranty Periods by Condition

New 12 months

Refurbished 6 months

Used 3 months

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Parameter	Specification
Manufacturer / Brand	Raychem
Model	JB-Ex-04
Equipment Type	Explosion-proof Junction Box (Heat Tracing System)
Enclosure Manufacturer	ROSE Systemtechnik
Explosion Protection	EEx e II T6
ATEX Classification	Ex s II / ATEX II C
Temperature Class	T2 to T6 (depending on heater type)
Maximum Voltage	660 V
Maximum Conductor Size	10 mm²
Certification No. (PTB)	Ex-91.C.3110
LCIE Approvals	85.2014X / 85.2015X / 85.2017X / 90.2008X
PTB Heater Certifications	Ex-89.Y.1601 / 1602 / 1604 / Ex-90.Y.1601
Compatible Heater Types	BTV, QTVR, KTV, XTV
Production Number	D097520
Manufacturing Date	06.02.1996
